Creating your own smartphone projector is a fun, budget-friendly, and educational project that provides a fantastic opportunity to experiment with optics while using everyday materials. This project is not only practical but also offers a hands-on learning experience about how light and lenses work. Whether you’re a student, parent, or simply looking for a creative project, constructing a DIY smartphone projector is a satisfying way to enjoy your phone’s content on a larger screen.
While the DIY projector won't match the quality and brightness of commercial models, it still provides a functional and enjoyable way to view your phone's videos, pictures, and presentations on a larger scale. Below is an in-depth guide to help you make your own homemade smartphone projector, walking you through the process with easily accessible tools and materials.

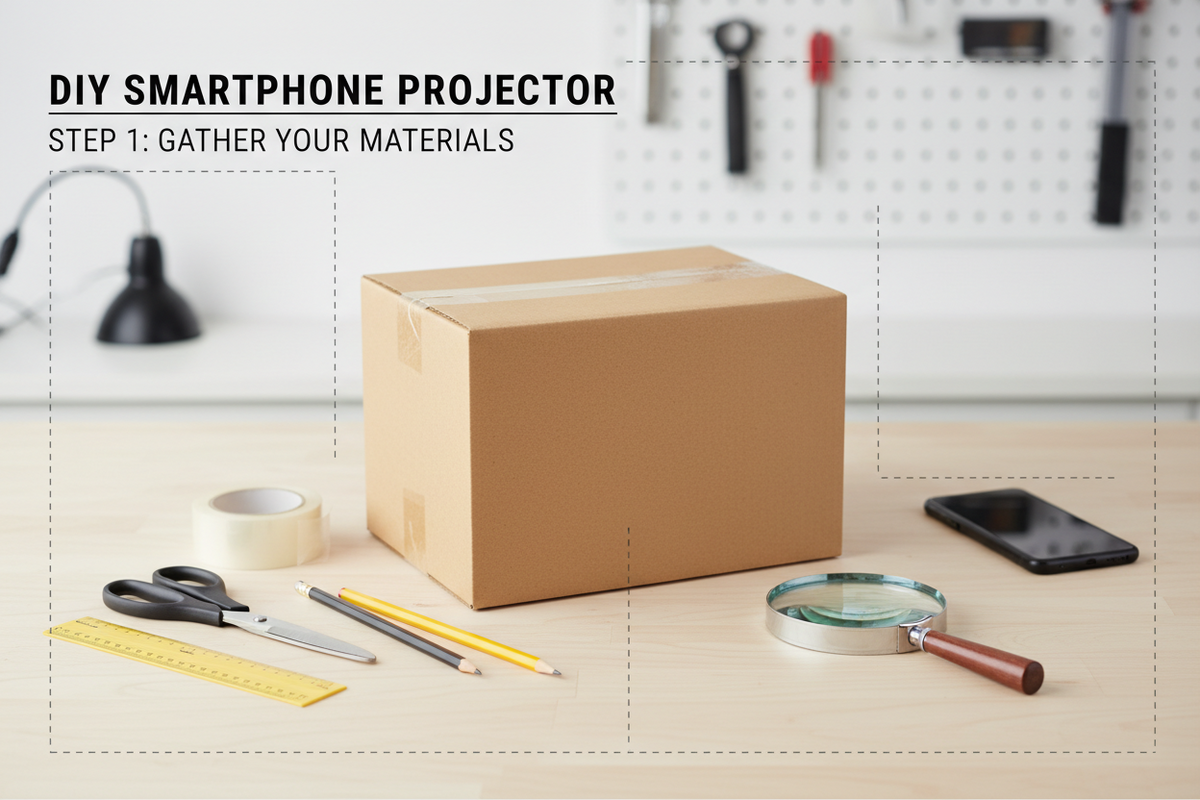

Gathering the Materials for Your DIY Smartphone Projector
When embarking on a DIY project like building your own smartphone projector, it's important to begin with the right materials. What makes this project particularly appealing is the fact that many of the necessary components can be found around your home, and the others are typically very affordable. In this guide, we will walk you through all the materials you'll need to construct your projector, with an emphasis on how to use common household items creatively.
Before jumping into the construction process, take a moment to gather the materials listed below. This will help ensure that you have everything ready to go, which in turn will make the build process much smoother.
1. A Shoebox or Similar Sized Cardboard Box
The foundation of your DIY smartphone projector is a box. A shoebox is the most commonly used container, though you can use any box that is long enough to accommodate your phone and provide space for the lens. The size of the box will determine the amount of light your projector can handle, and it will also give you the flexibility to adjust focus by sliding the lens closer or farther from your phone.
It is crucial to pick a box that has a sturdy, rigid structure. If the box is too flimsy, it may not hold up under the pressure of the lens and the weight of the phone. When choosing a box, make sure that it can hold your smartphone comfortably in place, allowing you to position it facing down on the hole you'll cut in the box's lid. The box also needs to be deep enough to allow for distance adjustments between the lens and your phone.
If a shoebox is unavailable, a similar-sized cardboard box will do. You can even experiment with boxes of varying sizes to see which one works best for your needs. Consider that a longer, narrower box may help concentrate light better, which could improve the brightness and sharpness of your projected image.
2. Black Matte Paint or Thick Black Paper
When building your DIY smartphone projector, one of the most important steps is to minimize light dispersion and ensure that the image on the wall is as clear and sharp as possible. Light bouncing off the inside of the box can reduce contrast and create a glare that lowers the quality of the projected image.
To avoid this, you need to black out the inside of the box. You have two main options for this: black matte paint or thick black paper. Matte paint is preferable if you want to fully coat the inside of the box and have it dry seamlessly. The matte texture absorbs light effectively, which will help ensure that your projector image is crisp and free of unwanted reflections.
Alternatively, you can use thick black paper to line the inside of the box. Cut the paper into strips or sheets that fit the base, sides, and lid of the box. Attach the paper using glue or double-sided tape to ensure it stays in place. If you're using paper, make sure it's dense enough to absorb light properly. Either option works well, so choose whichever material is more accessible to you.
For best results, the black matte coating should be applied to the entire interior, including the lid and any side that might cause light interference. If you choose to paint the box, remember that you'll need some drying time. Additionally, ensure that no surface of the box remains uncoated, as even small amounts of light reflection can affect the image quality.
3. A Ruler and Pencil for Measurements
Having accurate measurements is key to ensuring that all components of the DIY smartphone projector fit properly. You'll need a ruler to measure the box and the dimensions of your phone. A pencil is essential for marking the spots where you'll cut and place the components, such as the hole for the lens and the opening for your phone.
Using a pencil allows you to make precise markings that are easy to adjust if necessary. A ruler ensures that your cuts and placements are even, which is particularly important for creating a clean opening for the magnifying glass and ensuring that everything fits snugly within the box.
In addition to measuring the box and phone dimensions, you can also use the pencil to mark where you'll place the mirror and any other components. Proper measurements will help you avoid making any unnecessary adjustments later in the process, ensuring that your projector is both functional and aesthetically pleasing.
4. Scissors or a Precision Cutter
Once you've made your measurements and marked the areas that need to be cut, you'll need a sharp pair of scissors or a precision cutter to cut out the necessary sections. You will be cutting out a section of the box lid to create an opening for the phone, as well as a hole for the lens.
A precision cutter, such as an X-Acto knife, is ideal for making precise cuts, especially when working with thicker cardboard. It allows for clean edges and gives you more control over the cutting process. For those who are less comfortable with precision cutters, regular scissors can still do the job, though they may result in less clean cuts.
Be sure to handle your tools carefully to avoid accidents. It's also a good idea to use a cutting mat or a safe surface underneath the box to prevent damage to your work area.
5. Glue and Brush, or Double-Sided Adhesive Tape
Glue will be essential for attaching the black paper inside the box, as well as securing any components such as the mirror and the lens. It’s important to use a strong adhesive that will keep everything in place without drying too quickly. PVA glue or craft glue works well for this purpose. A brush can be used to apply the glue evenly and prevent it from becoming clumpy.
Alternatively, you can use double-sided adhesive tape if you prefer a less messy option. This is especially useful for adhering the black paper to the box’s interior, as tape will keep the paper smooth and securely in place. Tape also works well for attaching smaller components, like the magnifying glass, though it may not be as durable as glue for heavier pieces.
If you decide to use double-sided tape, make sure to get a strong variety that can hold up under the weight of the components.
6. A Magnifying Glass (Convex Lens)
The most important optical component in your DIY smartphone projector is the magnifying glass. A convex lens is necessary to enlarge the light from your phone screen and project it onto the wall. A regular handheld magnifying glass works perfectly for this purpose—just remove the handle, and you’re good to go!
When selecting a magnifying glass, choose one that has a sufficiently large lens to project the image clearly. The size of the lens will affect how sharp and bright the projected image will be. Larger lenses can create a larger image, but they may require more space in the box. A medium-sized magnifying glass (around 4–6 inches in diameter) is usually sufficient for most smartphones.
If you don’t have a magnifying glass on hand, you can often find inexpensive options at local stores or online. The lens itself is the key element, so make sure the magnifying glass you select has the correct properties for focusing and projecting light.
7. A Small Flat Mirror
To correct the inverted image produced by the lens, you will need a flat mirror. The mirror will reflect the light, flipping the image horizontally, so it appears the right way up on the wall. A small, flat mirror works best for this purpose. You can use a mirror from a cheap hand-held compact or even a small decorative mirror that fits the dimensions of your box.
Place the mirror at a 45-degree angle inside the box, opposite the magnifying lens. This angle is crucial for flipping the image correctly. If the mirror is too large, it may block the lens or distort the image, so choose one that fits comfortably inside the box without obstructing the phone or the lens.
8. Optional: Velcro, Decorative Paper, or Paint for Customization
To give your DIY smartphone projector a unique and personalized touch, you can use Velcro, decorative paper, or paints for customization. Velcro strips can be used to secure your phone in place, making it easier to remove and reposition the phone when necessary. This is especially useful if you want to change the content displayed without worrying about the phone moving during use.
You can also decorate the exterior of the box with paint, stickers, or colored paper to give it a fun look. This adds a creative aspect to the project and makes it something you can display proudly. Whether it’s for a child’s birthday party, a movie night, or a fun educational project, a little bit of decoration can make your projector even more enjoyable to use.
Building Your Smartphone Projector from Scratch
1. Choosing the Right Box and Mirror for the Base
The foundation of your DIY smartphone projector is the box. Selecting the right box is essential to the overall success of your projector because it will house all the critical components: the lens, the mirror, and your phone. The box should be sturdy enough to hold everything in place but not so large that light is lost in the process of projection. A long rectangular box is the ideal choice because it provides sufficient space to adjust the distance between the magnifying glass (or lens) and your phone, which is critical for adjusting the focus of the projected image.
A narrower box design works best because it helps concentrate light, reducing light dispersion and ensuring the projected image is brighter and sharper. When choosing your box, ensure that the size allows for both the lens and the phone to fit comfortably. A typical shoebox size, around 16 x 31 x 12 cm, is ideal. This gives you enough space to position your phone facing down while still allowing you to adjust the lens to get the best projection.
The next important consideration is the mirror. The role of the mirror in your DIY smartphone projector is to reflect the light passing through the magnifying glass so that the projected image appears the right way up. Without a mirror, the image will be inverted, and the projection will appear upside down or flipped horizontally. The mirror should be flat, clear, and roughly the same size as your phone screen. A glass mirror works best, as it provides a clearer reflection without distorting the light. Plastic mirrors, on the other hand, can warp the light, leading to a blurry or distorted image.
When choosing a mirror, you don't need anything too large or thick. A compact mirror that fits inside the box comfortably will do the job well. It’s also essential to place the mirror at the correct angle, typically 45 degrees, to flip the image from the magnifying glass correctly. This positioning ensures that when light is projected through the lens, it bounces off the mirror and is projected onto your desired screen or wall in the correct orientation.
2. Preparing the Inside of the Box to Prevent Light Reflection
Once you’ve selected the right box and mirror, the next step in ensuring a high-quality projection is to prevent light reflections inside the box. Light bouncing off the interior surfaces of the box can cause glare, which reduces contrast and leads to a dimmer, less sharp image. This is a common issue with DIY projectors, but it can be easily addressed with the right materials.
The goal here is to absorb any light that doesn’t contribute to the projection, as any stray light that bounces around the box can negatively affect the sharpness and quality of the projected image. To achieve this, you’ll need to line the inside of the box with black matte paint or black paper. Both of these materials will absorb excess light and prevent it from reflecting off the walls of the box.
Using black matte paint is an excellent option because it provides a seamless coating that effectively absorbs light and prevents reflection. The matte finish ensures that the light doesn’t bounce off the interior surfaces and scatter, which would reduce the sharpness of the image. If you choose to paint the box, make sure to use high-quality, non-reflective black paint. Apply an even layer to every internal surface, including the lid, bottom, and sides. Allow the paint to dry thoroughly before continuing to the next step. This drying time is essential to ensure the best finish and avoid smudging the paint.
If you prefer not to use paint, black matte paper is an equally effective solution. Cut the paper to size to fit the inside surfaces of the box. Carefully measure and cut the paper so that it fits perfectly on the bottom, sides, and lid of the box. Once the paper is cut, apply glue to the interior surfaces of the box and attach the paper, ensuring it’s adhered firmly with no wrinkles or air bubbles. Alternatively, you can use double-sided tape to attach the paper, but glue is a better option for long-lasting adhesion. It is important to make sure the edges of the paper are securely stuck to avoid any gaps where light could seep through.
A well-lined box ensures that all the light passing through the lens is focused on the projection surface, thereby enhancing the image contrast and sharpness. When the box is properly lined with black matte material, it acts like a light trap, absorbing any excess light that would otherwise cause unwanted reflections and reduce the quality of your image.
Whether you choose paint or paper, it’s crucial to apply the black material to every surface inside the box that could potentially reflect light. This includes the inside of the lid, the base, and any internal sections, especially the small cut-out areas for the lens and mirror. Proper coverage is essential for the best projection quality. If any areas are left uncovered, light may scatter, causing a reduction in brightness and clarity.
While you can paint the box inside or apply paper, ensure that the material used is matte rather than glossy. Glossy materials would reflect light, causing glare and unwanted reflections. Matte materials, on the other hand, are designed to absorb light and prevent these issues, allowing you to achieve a much clearer and sharper projected image.
Once all the inside surfaces of the box are covered, allow the glue to dry completely if you're using glue. If you’ve painted the box, make sure the paint has dried thoroughly before moving forward. Drying time is critical to ensure that everything sticks well and that there is no risk of smudging the material.
3. Installing the Magnifying Glass as the Lens
The magnifying glass plays a crucial role in your homemade smartphone projector. It acts as the optical lens that will enlarge the image from your phone and project it onto a larger surface, such as a wall or screen. When installed properly, the lens will magnify the light coming from your phone's screen, creating a larger and more detailed projection.
To begin, start by removing the handle of the magnifying glass. Most handheld magnifying glasses have a handle that isn’t necessary for the projection process. Carefully detach the handle so that you are left with just the lens. You want the lens to sit flat in the box, so the handle's removal is essential for a clean and smooth fit.
Next, focus on the narrow side of your shoebox, which will face the screen of your phone. Use a pencil to trace the outline of the magnifying glass lens onto the center of the side. It’s important to ensure that the lens is positioned precisely where it will be most effective. The lens should be centered so that light passes through it evenly from the phone’s screen. Once the outline is traced, carefully use a precision knife to cut out the shape. The cut should be as clean and precise as possible to ensure that the lens fits snugly into the hole.
After cutting out the traced shape, test the fit of the lens. It should fit snugly into the hole without leaving any gaps. The lens must sit flush against the box to prevent light from escaping through any openings, which could weaken the projection’s brightness and clarity. If the lens is too loose, you can add a small amount of glue around the edges to secure it in place. Be sure to use a strong adhesive that will hold the lens firmly in place, as any shifting could impact the quality of the projection.
When the lens is securely placed and positioned, the projector is ready to begin focusing the light coming from the phone's screen. The lens will enlarge the image, and by positioning it properly, you’ll achieve the desired clarity and brightness. The key here is ensuring that there are no gaps around the lens, as this will prevent the projection from being sharp and crisp.
The final step in installing the magnifying glass is ensuring that the lens remains firmly in place as you continue to work on the rest of the projector. A stable lens is essential for maintaining focus, and any movement could distort the projected image. This step is a foundational part of the projector, as the lens will be the primary element responsible for focusing and enlarging the image.
Fine-Tuning the Projector for Focus and Image Quality
Achieving a sharp and clear projection requires more than just installing the lens—it’s crucial to have a mechanism in place that allows you to adjust the focus. Since the size and clarity of the projected image depend on the distance between the lens and the phone's screen, the ability to move the lens will give you control over the focus. This adjustment will allow you to fine-tune the sharpness of the image, ensuring that it looks as crisp as possible on the projection surface.
To achieve this, you need to construct a sliding inner box that can move within the outer box. The inner box will hold the lens, and by sliding it back and forth, you’ll be able to adjust the distance between the phone and the lens. This setup allows for a manual focus adjustment, which is essential for achieving optimal image quality.
Start by measuring the inner dimensions of the outer box. This measurement will guide you in cutting the black cardboard or another material to fit perfectly inside the box. When cutting the cardboard, make sure that each piece fits snugly, and there are no gaps between the pieces. The inner box needs to move freely, so it should not be too tight or too loose. A well-fitting inner box will slide smoothly without causing friction or distortion.
Once the cardboard pieces are cut to size, fold them along the edges to create the four panels of the inner box. Ensure that the edges of the panels line up perfectly, and add small tabs at each corner to secure the panels together. Use strong glue to attach the tabs, forming the structure of the inner box. The finished box should fit comfortably inside the outer box, with just enough space for smooth sliding.
Next, attach the lens to the front panel of the inner box. Again, ensure that the lens is firmly glued in place and that there is no wobbling. The lens should be fixed to the panel, with the face of the lens directed toward the phone screen. This placement ensures that the light from the phone's screen will pass through the lens and be projected onto the wall.
With the inner box and lens in place, you now have a movable mechanism that will allow you to adjust the focus. By sliding the inner box forward or backward, you can change the distance between the phone’s screen and the lens. When you move the inner box closer to the phone, the projected image will appear larger but may lose some clarity. Conversely, moving the inner box farther away will reduce the size of the projected image while increasing its sharpness. The ability to adjust this distance will give you the flexibility to achieve the best focus for your needs.
4. Why Adjusting Focus is Crucial for Your DIY Projector
Focusing is one of the most important aspects of image projection. Without the ability to fine-tune the focus, the projected image can appear blurry, distorted, or out of proportion. This is why the sliding inner box is such an important component of your DIY smartphone projector. By allowing for manual focus adjustments, you can ensure that the projected image is as clear and sharp as possible.
Adjusting the focus of your projector is also important when working in different environments. The size of the projection surface (whether it's a wall, screen, or other surface) can affect the image clarity. Depending on how far away the projector is from the wall, you may need to adjust the focus to achieve the best image quality. Having a movable lens makes this process much easier, and you’ll have the flexibility to adjust it for different viewing scenarios.
It’s important to test the projector in various lighting conditions and distances. For example, try projecting in a completely dark room as well as in a dimly lit room to see how the image quality changes. In some cases, you may need to fine-tune the focus again, especially if the image appears faint or unclear in different lighting environments. By continuously adjusting the focus and testing it under different conditions, you’ll be able to achieve the optimal sharpness and clarity for your specific needs.
Installing the Mirror to Correct Image Orientation
As you work to construct your DIY smartphone projector, one challenge you’ll encounter is that using a single convex lens in the setup can invert the image. This happens because convex lenses naturally flip the image upside down and reverse it left to right. While flipping the phone upside down can fix the vertical inversion, you still need to address the horizontal flip. This is where the mirror comes into play, helping to correct the image and ensure that it’s oriented properly on your projected surface.
The mirror acts as a reflective surface that flips the image horizontally. Without this step, the projected image will appear reversed—text will look backwards, and objects will appear mirrored. To correct this, you need to position a small flat mirror inside the box at a 45-degree angle. The ideal position for the mirror is opposite the magnifying lens, at an angle that ensures light from the lens reflects off the mirror and lands on your projection surface.
Start by securing the mirror in place inside the box. Use a strong adhesive or glue to fix the mirror at the desired angle. The mirror should be large enough to reflect the image clearly from the phone’s screen without obstructing the lens or the light path. A small mirror that fits snugly within the box works best. Ensure that the mirror is firmly adhered to the box, and avoid placing it too close to the lens, as this could distort the image or interfere with light projection.
Once the mirror is installed, verify its positioning by looking through the magnifying lens. You should be able to see the phone's screen reflected clearly in the mirror. This is the point at which the light passes through the lens, is reflected by the mirror, and is projected onto the wall or screen in the correct orientation. Adjust the mirror slightly if necessary to fine-tune the image reflection. If done correctly, the mirror should flip the left-to-right inversion caused by the lens, and your image will be oriented properly on the projected surface.
It's important to test the alignment by projecting an image and checking for any distortion. Make sure the mirror is positioned in such a way that it doesn’t block or distort the light passing from the lens to the projection surface. You may need to tweak the angle or positioning of the mirror to ensure the image is clear and well-centered.
By installing the mirror at the correct angle, you eliminate the problem of the reversed image, allowing the projection to appear exactly as it would on the phone's screen. This step is crucial for ensuring that your DIY smartphone projector functions properly and delivers an accurate, clear image.
Cutting a Display Opening for Your Phone
With the lens and mirror in place, the next step is to create a display opening for your phone. This is an essential part of the build, as the phone needs to fit snugly into the box in order to project the image through the lens correctly. The opening you cut out will serve as the window through which the phone’s screen will shine. It’s important to be precise in your measurements to ensure that the phone remains stable and secure during the projection process.
Start by measuring the dimensions of your phone’s screen. Use a ruler to accurately measure the width and height of the screen and transfer these measurements to the lid of your box. Mark the dimensions clearly with a pencil or pen. Accuracy is key here, as the opening needs to be just large enough to accommodate your phone comfortably without leaving excess space around the edges. A snug fit will help prevent the phone from moving during use, ensuring a steady and sharp image projection.
Once you’ve marked the outline of your phone’s screen on the box lid, use a precision knife or a craft cutter to carefully cut out the rectangle. It’s important to use a steady hand during this step to avoid jagged edges, which could interfere with the phone’s placement or the projection quality. The precision knife will give you better control over the cut compared to regular scissors, allowing you to make cleaner, more accurate cuts.
When cutting the hole, it’s okay if it’s a little larger than your phone’s screen. However, make sure not to make the hole too large, as this could cause the phone to slip out or move around inside the box, which would disrupt the image projection. Aim for a hole that’s just slightly larger than the screen dimensions, providing enough room for the phone to sit securely but not so much that it wobbles.
After you’ve cut out the hole, it’s time to install the magnifying glass. Take the lens and carefully place it into the hole you just created. The lens should fit snugly in place, without any gaps or loose areas around the edges. You can secure the lens in place with glue or double-sided adhesive tape. Make sure that the lens is firmly attached and positioned flush with the surface of the box. If the lens is not seated properly, light could escape through the edges, leading to a weaker or blurry projection.
At this stage, your projector’s structural build is nearly complete. The phone is ready to be placed inside the box, and the magnifying glass is securely in position to enlarge the image. With the phone screen facing down toward the lens, the light will pass through the lens, enlarge, and be projected onto the wall or screen. Before securing the phone in place, test the alignment of the lens and the hole to make sure the projection will appear correctly.
Ensuring a Secure and Stable Fit for the Phone
Once the hole is cut and the magnifying glass is in place, the next important step is ensuring that your phone remains in a stable position during use. A shifting or unsteady phone could lead to blurry images or interruptions in the projection. The easiest way to secure the phone in place is by using small Velcro strips or a simple cardboard bracket.
Velcro is a great solution because it allows you to attach and remove the phone easily, which is ideal if you want to switch between devices or need to adjust the phone for better focus. Simply attach one side of the Velcro to the inside of the box and the other side to the back of your phone. This will hold the phone securely in place while allowing for easy removal if needed.
Alternatively, you can create a small cardboard bracket to hold the phone in position. Cut a piece of cardboard to fit snugly around the phone, ensuring that it won’t move around once inserted. Use glue to attach the bracket to the inside of the box, and make sure it is firmly in place before inserting your phone. This method works well if you want a more permanent solution, as the cardboard bracket will keep the phone from shifting during use.
Testing and Adjusting the Projector
With the lens, mirror, and phone in place, it’s time to test your DIY smartphone projector. Set up the projector in front of a blank, white wall or projection screen in a dark room. The absence of ambient light will ensure the best possible clarity and contrast for the projected image.
Start by positioning your phone inside the box, ensuring it’s aligned with the lens and the cut-out opening. Turn on the phone and set the brightness to its maximum level. If your phone has an auto-rotate feature, disable it and set the screen orientation to landscape mode. This will help the image appear properly on the projected surface.
Place the projector at the desired distance from the wall and adjust the focus by sliding the inner box (containing the lens) forward or backward. This will change the distance between the phone and the lens, allowing you to find the sharpest focus for the projected image. You may also need to move the projector closer or further from the wall to achieve the correct image size.
As you test the projector, make adjustments to the mirror, lens, and phone alignment to ensure the image is clear and well-oriented. You may need to tweak the mirror’s angle slightly to ensure the image is reflected properly and the projection is not distorted. Once everything is properly aligned, you’ll have a fully functioning DIY smartphone projector ready for use.
Calibrating and Using Your DIY Smartphone Projector
Adjusting Focus and Image Size
To use the projector, place it in a dark room facing a white wall or screen. Ensure that your phone is positioned upside down inside the box, and set the screen to its highest brightness level. Disable auto-rotation and set the screen sleep timer to "Never" to prevent the phone from turning off during use.
Now, slide the inner box (with the magnifying lens) forward or backward to adjust the focus until the projected image appears sharp. You may also need to adjust the distance between the projector and the wall to modify the image size. The further the projector is from the wall, the larger the image will appear, but it may reduce the image's brightness. Play around with the distance and focus to achieve the sharpest and clearest image.
Using the Projector Without a Mirror
If you don't have a mirror, you can still make the projector work. Without a mirror, the image will be horizontally flipped, but it can still be used for general purposes, such as watching videos or viewing images. Simply place your phone with the screen facing the magnifying glass, upside down. You can use Velcro strips or create a bracket from cardboard to secure the phone in place.
However, this version won't correct the image orientation, so avoid using content with text or writing, as it will appear reversed.
Conclusion: A Fun and Educational DIY Project
Building your own smartphone projector is an enjoyable and creative project that combines elements of science, design, and DIY craftsmanship. It’s a great way to learn about light, lenses, and the basics of optical technology. While it may not match the performance of high-end projectors, it offers a practical solution for casual viewing and is an excellent activity for families, students, or anyone with an interest in hands-on learning.
Once completed, your DIY smartphone projector is perfect for movie nights, storytelling, or simply enjoying content in a new way. By customizing it with paint, paper, or other materials, you can make it uniquely yours. And as an added bonus, you’ll have a deeper appreciation for the way light and lenses work together to create larger-than-life projections.
