Lens reversing rings are simple yet powerful accessories that allow you to mount a camera lens backward onto your camera body. This unusual setup transforms an ordinary lens into a high-magnification macro tool. Instead of using complex macro lenses or expensive attachments, photographers can achieve extreme close-up detail by reversing a standard lens using a small adapter ring.
At first glance, the idea may seem unusual, but the optical principle behind it is surprisingly practical. Lenses are designed to project a focused image onto the camera sensor at a specific distance. When you reverse the lens, that optical design is flipped, allowing it to magnify subjects at a very close range instead of focusing on distant scenes. This creates a dramatic increase in magnification, often far beyond what standard macro lenses offer.
How Reversal Changes Optical Behavior
When a lens is mounted normally, it is optimized for focusing light from far away onto the sensor. Reversing the lens changes this relationship entirely. The rear element becomes the front element, and the lens now performs best at very short distances. This shift allows photographers to capture subjects like insect eyes, fabric textures, or flower pollen in extraordinary detail.

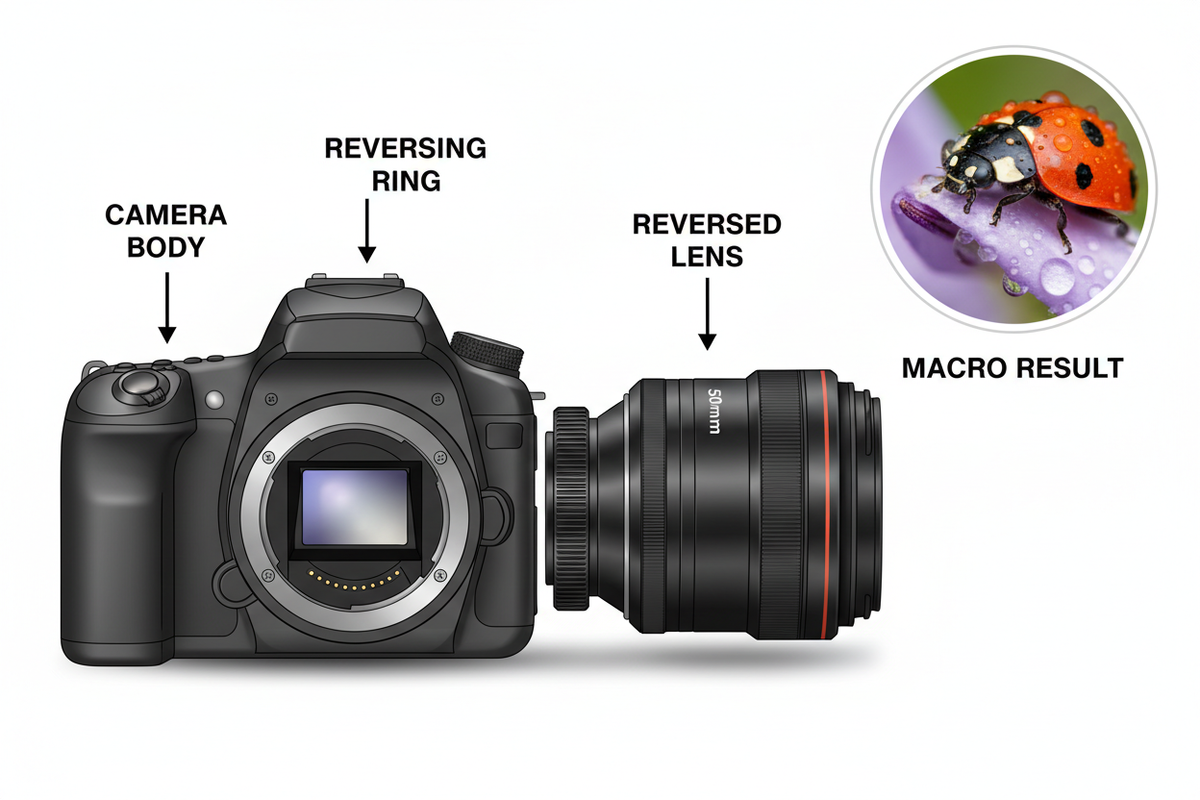

The reversing ring acts as the physical bridge between the lens and the camera body. One side of the ring fits the camera mount, while the other side attaches to the lens filter thread. This simple connection is what makes the entire macro transformation possible.
Why Reversed Lenses Create Magnification
Reversed lenses achieve macro magnification through the principle of optical projection. Instead of capturing a wide field of view, the lens focuses on a very narrow plane of space extremely close to the front element. This compression of working distance leads to high magnification ratios, often greater than 1:1 depending on the focal length used.
Shorter focal length lenses typically produce higher magnification when reversed. A 28mm or 35mm lens, for example, can produce dramatic macro results, often filling the frame with tiny details that are invisible to the naked eye. Longer lenses, when reversed, may produce less extreme magnification but offer slightly more working distance.
The Role of Aperture Control
One of the most important aspects of reversed lens photography is aperture control. Since most modern lenses do not have manual aperture rings, controlling depth of field becomes more complex. In many cases, the lens must be set to a specific aperture before detaching it from the camera, or specialized adapters must be used.
A smaller aperture increases depth of field but reduces light, while a wider aperture allows more light but creates a very shallow focus plane. Finding balance is essential when working at such extreme magnification levels.
Key Optical Effects in Macro Reversal
-
Extremely shallow depth of field
-
Strong background blur and isolation
-
Enhanced texture and surface detail
-
Increased sensitivity to light changes
-
Pronounced focus falloff at edges
These optical characteristics are what make reversed lens macro photography both challenging and visually striking.
Essential Gear for Macro Setup
To successfully use lens reversing rings, you need more than just the adapter itself. A stable and well-prepared setup ensures sharp results and reduces frustration during shooting.
Core Equipment Required
The basic gear includes a camera body, a compatible lens, and a reversing ring that matches both mounts. However, additional tools can significantly improve results.
-
A sturdy tripod for stability
-
External light source or flash
-
Manual focus-capable lens
-
Remote shutter release
-
Extension tubes for extra magnification
Each of these components plays an important role in controlling the extreme conditions of macro photography. Even slight camera movement can cause blur when working at very close distances, so stability is essential.
Importance of Lens Selection
Not all lenses perform equally when reversed. Prime lenses are generally preferred due to their simpler optical design and consistent sharpness. Wide-angle lenses tend to produce the strongest macro magnification when reversed, while zoom lenses may introduce more complexity and less predictable results.
Choosing the Right Reversing Ring
Selecting the correct reversing ring is critical for achieving a secure and functional setup. These rings are inexpensive but must match your lens filter thread size and camera mount type precisely.
Matching Mount and Filter Size
Each lens has a filter thread diameter, usually marked on the front of the lens. The reversing ring must match this size on one side and your camera mount on the other. A mismatch can result in instability or inability to attach the lens properly.
Material and Build Quality Considerations
While reversing rings are simple tools, build quality still matters. Metal rings are more durable and provide a tighter connection compared to plastic versions. A secure fit reduces the risk of lens wobble, which is especially important in macro photography where even tiny vibrations are magnified.
Types of Reversing Adapters
Some reversing rings are basic fixed adapters, while others include additional features such as electrical contacts or aperture control mechanisms. Advanced versions allow partial communication between lens and camera, but basic manual rings remain the most common and affordable choice.
Step-by-Step Mounting Process Guide
Using a lens reversing ring requires careful handling to avoid damage and ensure proper alignment. The process is simple but must be done in the correct order.
Preparing Your Equipment Safely
Before mounting, ensure your camera is turned off and placed on a stable surface. Remove the lens carefully and set it aside. Always handle the rear lens elements with care, as they are more exposed when reversed.
Attaching the Reversing Ring
Screw the reversing ring onto the filter thread of the lens. Make sure it is tightened evenly but not overly forceful. Once secured, align the ring with the camera mount and gently attach it as you would a normal lens.
Final Setup Adjustments
After mounting, check for stability. The lens should feel firmly attached without wobbling. Switch your camera to manual mode, as autofocus will no longer function effectively in most reversed setups.
Camera Settings for Sharp Macro Shots
Macro photography with reversed lenses requires careful control over camera settings to compensate for reduced light and shallow depth of field.
Recommended Exposure Settings
Since reversed lenses often reduce light transmission, higher ISO settings may be necessary. However, balancing ISO with image noise is important. A moderate ISO combined with external lighting often produces the best results.
Shutter speed should be fast enough to prevent motion blur, especially when working without a tripod. Aperture control is limited, so exposure must be adjusted primarily through light and shutter speed.
Manual Mode Advantages
Manual mode gives full control over exposure, which is essential in macro work. Automatic settings may struggle with unpredictable lighting conditions and extreme close-up contrast variations.
Managing Light in Extreme Closeups
Lighting is one of the most challenging aspects of macro photography using reversed lenses. Because the subject is extremely close to the lens, natural light may be blocked or uneven.
Using Artificial Lighting Effectively
External flashes, LED panels, or ring lights can help illuminate the subject evenly. Diffusing light is especially important to avoid harsh shadows that can obscure fine details.
Controlling Shadows and Highlights
At close distances, even small objects can cast large shadows. Adjusting light angles and using reflectors can help balance exposure and reveal texture without losing detail.
Focusing Techniques for Tiny Subjects
Focusing with a reversed lens is entirely manual and requires patience. The depth of field is extremely narrow, often measured in millimeters or less.
Moving the Camera Instead of Lens
One effective technique is to keep the lens fixed and move the camera slightly forward or backward to achieve focus. This method provides more control than trying to adjust focus rings, which are often ineffective in reversed setups.
Focus Stacking for Depth Control
In situations where greater depth of field is needed, multiple images can be taken at slightly different focus points and combined later. This technique helps create a fully sharp macro image of complex subjects.
Common Challenges and How Solve
Working with reversed lenses introduces several challenges that photographers must learn to manage.
Stability and Vibration Issues
Because magnification is so high, even small vibrations become noticeable. Using a tripod and remote shutter release can significantly reduce this problem.
Light Loss and Exposure Struggles
Reversing a lens often reduces light reaching the sensor. Compensating with external lighting or higher ISO settings is necessary to maintain proper exposure.
Limited Working Distance
The subject must be extremely close to the lens, which can make photographing living subjects like insects difficult. Patience and careful positioning are required.
Creative Subjects for Macro Photography
Reversed lens macro photography opens up a wide world of creative possibilities. Everyday objects become fascinating when viewed at extreme magnification.
Exploring Natural Textures
Flowers, leaves, and insect details reveal intricate patterns that are normally invisible. Water droplets, pollen grains, and fabric fibers also make compelling subjects.
Household Objects as Art
Everyday items such as paper, coins, food textures, and fabrics can be transformed into abstract visual art when photographed up close.
-
Flower petals and pollen structures
-
Fabric fibers and woven textures
-
Water droplets on surfaces
-
Metallic scratches and reflections
Stabilization Methods for Macro Work
Stability is essential when working at extreme magnification levels. Without proper support, even breathing movement can ruin a shot.
Tripod and Support Systems
A solid tripod is the foundation of macro stability. Adding a macro focusing rail can further improve precision by allowing micro-adjustments in camera position.
Handheld Stability Techniques
When a tripod is not available, bracing your elbows against a stable surface or using burst shooting can help reduce blur.
Post Processing Macro Photography Images
Editing plays a significant role in enhancing macro images captured with reversed lenses. Due to lighting limitations and extreme detail, post-processing helps refine the final result.
Enhancing Texture and Sharpness
Adjusting clarity, contrast, and sharpness can bring out fine details. Care should be taken not to over-process, as macro images can quickly become unnatural if pushed too far.
Color Correction and Balance
Macro lighting conditions often introduce color shifts. Adjusting white balance ensures that natural tones are preserved, especially in nature photography.
Advanced Tips for Better Results
Once you understand the basics, advanced techniques can elevate your macro photography to a new level.
Experimenting with Lens Combinations
Some photographers stack reversing rings with extension tubes for even greater magnification. This technique requires careful handling but can produce highly detailed results.
Controlling Depth Creatively
Instead of trying to increase depth of field, embracing shallow focus can create artistic compositions that highlight specific details while blurring distractions.
Safety Tips for Equipment Handling
Because reversed lenses expose rear elements and require direct mounting, careful handling is important to avoid damage.
Protecting Lens Elements
Always store lenses with caps when not in use. Avoid touching glass surfaces, especially the rear element when the lens is reversed.
Secure Mounting Practices
Ensure that all connections are tight but not forced. Loose mounting can lead to accidental drops or misalignment during shooting sessions.
Understanding Working Distance Limits
One of the most important realities of using lens reversing rings is the extremely short working distance between the front of the lens and the subject. In many cases, the subject may need to be just a few centimeters away from the lens to achieve proper focus. This creates both creative opportunities and practical limitations that every photographer must learn to manage.
At such close range, even minor adjustments in camera position can completely change the focus point. This makes precision movement far more important than traditional focusing techniques. It also means that photographing living subjects becomes more challenging, since insects or small animals may be disturbed by the proximity of the lens.
Working distance is directly influenced by focal length. Shorter focal length lenses tend to require the subject to be closer, while slightly longer focal lengths provide a bit more space. However, this trade-off often comes with reduced magnification strength, so photographers must balance convenience with creative intent.
Practical Implications of Close Distance
The extremely narrow space between lens and subject introduces a few consistent challenges:
-
Difficulty lighting the subject without blocking illumination
-
Higher chance of accidental camera shadow on the scene
-
Increased risk of disturbing natural subjects
-
Limited flexibility in composition adjustments
-
Greater sensitivity to camera shake and vibration
Understanding these limitations helps photographers plan their shooting environment more effectively and avoid frustration during field work.
Comparing Lens Focal Length Behavior
Not all lenses behave the same way when reversed, and focal length plays a major role in determining the final image characteristics. When a lens is mounted normally, longer focal lengths typically provide greater reach. However, when reversed, the relationship becomes more complex and less intuitive.
Wide-angle lenses, when reversed, often produce the highest magnification levels. This is because their optical design is optimized to capture broad scenes, and reversing that design compresses the image plane dramatically. As a result, subjects appear significantly enlarged, sometimes filling the entire frame with microscopic detail.
Telephoto lenses, on the other hand, tend to offer lower magnification when reversed but provide slightly more working distance. This can be useful when photographing subjects that require a bit more space or when lighting setup becomes difficult in tighter conditions.
Choosing the Right Focal Range
Selecting the appropriate focal length depends on the type of macro photography you want to pursue. A few general observations help guide this decision:
-
24mm to 35mm lenses often deliver extreme magnification but very tight working space
-
40mm to 60mm lenses provide a balance between magnification and usability
-
85mm and above lenses offer easier handling but reduced macro intensity
Experimentation is key, as each lens behaves slightly differently depending on its internal optical design.
Improving Image Sharpness Consistency
Achieving consistent sharpness in reversed lens macro photography can be difficult due to the extremely shallow depth of field and high sensitivity to movement. Even slight shifts in camera position or subject distance can lead to noticeable focus changes.
One effective approach is to use controlled micro-movements rather than relying on lens focusing adjustments. By gently moving the camera forward or backward, photographers can find a precise focal plane more reliably. This method is especially useful when working on a tripod with a focusing rail.
Another important factor is vibration control. Using a remote shutter release or camera timer helps eliminate the small shakes caused by pressing the shutter button. Mirrorless cameras also offer advantages in this area since they eliminate internal mirror movement.
Techniques for Consistent Sharpness
To improve sharpness consistency in macro reversal setups, consider the following methods:
-
Use manual focus only and avoid autofocus reliance
-
Stabilize camera using a solid tripod or macro rail
-
Enable electronic shutter or silent shooting mode
-
Keep ISO low while using controlled lighting
-
Shoot multiple frames for selection during editing
These techniques significantly improve the probability of capturing usable, high-detail macro images.
Handling Dust and Sensor Protection
When using a reversed lens setup, the rear element of the lens becomes exposed, which increases the risk of dust entering the optical system or even reaching the camera sensor. This makes careful handling essential during both setup and storage.
Unlike standard lens configurations, reversed lenses do not provide the same level of internal protection. As a result, photographers must be more mindful of environmental conditions, especially when shooting outdoors.
It is also important to avoid changing lenses in dusty environments. Even a small particle can become highly visible in macro photography due to the extreme magnification levels involved.
Best Practices for Protection
Maintaining clean equipment ensures better image quality and reduces post-processing effort:
-
Always cap the lens immediately after removing it
-
Avoid reversing lenses in windy or sandy environments
-
Store gear in sealed camera bags when not in use
-
Regularly clean rear lens elements with proper tools
-
Check sensor condition frequently for dust spots
By following these practices, photographers can maintain both equipment safety and image clarity over time.
Creative Macro Lighting Angles
Lighting is not just a technical requirement in reversed lens macro photography; it is also a creative tool. Because of the extreme closeness to the subject, small changes in light direction can completely transform the mood and texture of an image.
Side lighting is particularly effective for revealing surface details. It enhances textures such as skin, fabric fibers, or natural patterns in leaves and insects. Backlighting, on the other hand, can create glowing edges and highlight transparency in subjects like petals or water droplets.
Diffused lighting remains essential for avoiding harsh highlights. A simple diffuser placed between the light source and the subject can soften shadows and produce a more balanced image.
Lighting Techniques to Experiment With
Creative lighting approaches can dramatically improve macro results:
-
Side lighting for texture enhancement
-
Backlighting for translucent effects
-
Diffused flash for even exposure
-
Reflective fill light to reduce harsh shadows
-
Low-angle lighting for dramatic contrast
Each lighting style changes the visual storytelling of the macro image, allowing for greater artistic expression.
Exploring High Magnification Subjects
Reversed lens macro photography opens the door to a hidden world of detail that is often overlooked. Everyday objects become visually complex when viewed at extreme magnification, revealing textures and structures that are normally invisible.
Natural subjects such as flowers, insects, and small plants remain popular, but artificial objects can be equally fascinating. Paper fibers, fabric threads, metal surfaces, and even food textures can produce abstract and visually striking compositions.
The key is to observe surfaces that contain variation in texture or structure. Smooth, uniform objects may appear less interesting at macro scale, while complex surfaces often reveal surprising patterns.
Interesting Macro Subject Ideas
Some compelling subject categories include:
-
Natural textures like leaves, bark, and petals
-
Human-made materials such as fabric and paper
-
Reflective surfaces including metals and glass
-
Organic close-ups like fruits and seeds
-
Water formations such as droplets and ripples
Each subject type offers unique visual characteristics when captured through a reversed lens.
Troubleshooting Common Image Issues
Even with proper setup, reversed lens macro photography can present several recurring image issues. Understanding how to identify and correct these problems is essential for consistent results.
One common issue is uneven exposure, often caused by inconsistent lighting or lens blockage. Because the subject is so close to the lens, even small obstructions can alter light distribution significantly.
Another frequent problem is edge softness. While center sharpness may be strong, the outer areas of the image can appear less detailed due to the extreme optical configuration. This is often a natural limitation rather than a technical fault.
Color shifts can also occur depending on lighting conditions and lens coatings. Adjusting white balance during post-processing usually resolves these inconsistencies.
Effective Solutions for Common Problems
To address typical macro reversal challenges, consider these approaches:
-
Reposition lighting to avoid shadows from the lens body
-
Adjust exposure compensation manually for consistency
-
Use focus stacking to overcome shallow depth limitations
-
Correct white balance during editing for accurate tones
-
Crop images to improve composition and reduce edge softness
By recognizing these issues early, photographers can adapt their technique and produce more reliable results across different shooting conditions.
Expanding Creative Macro Skills
As experience grows, reversed lens macro photography becomes less about technical limitations and more about creative exploration. The simplicity of the equipment encourages experimentation, allowing photographers to focus on composition, texture, and light rather than relying on automated features.
Over time, users often develop a more intuitive understanding of distance, lighting behavior, and subject interaction. This gradual improvement leads to more confident shooting and increasingly artistic results, even with minimal gear.
Final Thoughts
Lens reversing rings offer an accessible and highly creative way to explore macro photography without investing in expensive dedicated macro lenses. They transform ordinary equipment into powerful tools for exploring unseen worlds of detail.
By understanding optical behavior, mastering manual control, and practicing patience, photographers can achieve extraordinary close-up imagery. The process encourages experimentation, technical learning, and creative exploration, making it a rewarding technique for anyone interested in discovering the hidden beauty of small-scale subjects.
